Showing 25057–25072 of 208945 results
-
1PH8107-1SG02-1LA1 Siemens SIMOTICS M compact asynchronous motor 2000 r/min 10.5 kW 50 Nm 26 A 355 V 2300 r/min 12 kW 50 Nm 26 A 406 V 2650 r/min 13 kW 47 Nm 24 A 460 V 2800 r/min 13.7 kW 47 Nm 24 A 480 V forced ventilation; direction of air flow DE–> NDE; IP55 degree of protection Incremental encoder 19-bit Without commutation position (encoder IN19DQ) with DRIVE-CLiQ interface DESIGN IM B5 (IMV 1,IM V3) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: PERFORMANCE, VIBRATION SEVERITY GRADE SPECIAL/B; SHAFT A. FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
-
1PH8107-3MD13-2AA1 Siemens SIMOTICS M compact asynchronous motor 1000 r/min 6.3 kW 60 Nm 17.5 A 307 V 1150 r/min 7.2 kW 60 Nm 17.5 A 348 V 1350 r/min 8 kW 57 Nm 17 A 400 V 1500 r/min 8.8 kW 56 Nm 17 A 440 V forced ventilation; direction of air flow NDE–> DE; IP55 degree of protection Incremental encoder SIN/COS 1 VPP 2048 S/R with C and D track (encoder IC2048S/R) with temperature sensor KTY 84-130 Design IM B35 (IM V15, (IM V35) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE A; SHAFT A.FLANGE ACCURACY GR.N TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
-
1PH8131-1CS02-3MC2 Siemens SIMOTICS M Compact asynchronous motor 2000 rpm, 14.6 kW, 70 Nm, 39 A, 302 V 5000 rpm, 14.6 kW, 28 Nm, 40 A, 360 V 1500 rpm, 11 kW, 70 Nm, 39 A, 227 V Forced ventilation; Direction of air flow DE –> NDE; Degree of protection IP55 Incremental encoder sin/cos 1 Vpp 256 S/R without C and D track (encoder IN256S/R) With temperature sensor Pt1000 DESIGN IM B5 (IMV 1,IM V3) PLAIN HOLLOW-SHAFT BEARING: HIGH PERFORMANCE VIBRATION SEVERITY GRADE SPECIAL/B SHAFT AND FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT
-
1PH8131-1DF02-2BA1-Z V90 Siemens SIMOTICS M compact asynchronous motor 1500 r/min 11 kW 70 Nm 24 A 360 V 1750 r/min 13 kW 71 Nm 24 A 416 V 2000 r/min 15 kW 72 Nm 24 A 460 V 2200 r/min 16.5 kW 72 Nm 24 A 500 V forced ventilation; direction of air flow DE–> NDE; IP55 degree of protection Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface DESIGN IM B5 (IMV 1,IM V3) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END V90: shaft extension 42x 110 mm 1PH7-compatible
-
1PH8131-1JF03-2GB2-Z V90+X01 Siemens SIMOTICS M compact asynchronous motor 1500 r/min 11 kW 70 Nm 24 A 360 V 1750 r/min 13 kW 71 Nm 24 A 416 V 2000 r/min 15 kW 72 Nm 24 A 460 V 2200 r/min 16.5 kW 72 Nm 24 A 500 V forced ventilation; direction of air flow DE –> NDE; IP55 degree of protection Incremental encoder HTL 2048 S/R (encoder HTL2048S/R) With temperature sensor Pt1000 DESIGN IM B35 (IM V15, IM V35) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD, VIBRATION SEVERITY GRADE: R/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE LEFT SIGNAL CONNECTION D-END V90: shaft extension 42x 110 mm 1PH7-compatible X01: PAINT FINISH RAL 9005 (MATT BLACK)
-
1PH8131-1JF22-1BA2 Siemens SIMOTICS M compact asynchronous motor 1500 r/min 15 kW 96 Nm 30 A 380 V 1750 r/min 17 kW 93 Nm 30 A 425 V 2000 r/min 18.5 kW 88 Nm 30 A 460 V 2200 r/min 20 kW 87 Nm 29 A 500 V water cooling degree of protection IP65 Incremental encoder HTL 2048 S/R (encoder HTL2048S/R) With temperature sensor Pt1000 DESIGN IM B5 (IMV 1,IM V3) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
-
1PH8133-1DD02-1CC1 Siemens SIMOTICS M compact asynchronous motor 1000 r/min 12 kW 115 Nm 30 A 319 V 1150 r/min 13.5 kW 112 Nm 29 A 361 V 1350 r/min 15 kW 106 Nm 28 A 417 V 1500 r/min 16.6 kW 106 Nm 28 A 459 V forced ventilation; direction of air flow DE–> NDE; IP55 degree of protection Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface DESIGN IM B5 (IMV 1,IM V3) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: S/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT
-
1PH8133-1DF02-2GA1 Siemens SIMOTICS M compact asynchronous motor 1500 r/min 15 kW 96 Nm 34 A 342 V 1750 r/min 17.5 kW 96 Nm 34 A 392 V 2000 r/min 20 kW 96 Nm 34 A 445 V 2200 r/min 22 kW 96 Nm 34 A 480 V forced ventilation; direction of air flow DE–> NDE; IP55 degree of protection Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface DESIGN IM B5 (IMV 1,IM V3) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD, VIBRATION SEVERITY GRADE: R/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
-
1PH8133-1DG00-0BH1 Siemens SIMOTICS M compact asynchronous motor 2000 r/min 20 kW 96 Nm 45 A 350 V 2300 r/min 22.5 kW 93 Nm 44 A 400 V 2650 r/min 24 kW 86 Nm 41 A 456 V 2800 r/min 25 kW 85 Nm 41 A 480 V forced ventilation; direction of air flow DE–> NDE; IP55 degree of protection Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface DESIGN IM B3 (IM V5, IM V6) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R POWER CONNECTOR (ABOVE) CABLE ENTRY ON THE D-END SIGNAL CONNECTION LEFT
-
1PH8133-1DG03-0BA1 Siemens SIMOTICS M compact asynchronous motor 2000 rpm 20 kW 96 Nm 45 A 350 V 2300 rpm 22.5 kW 93 Nm 44 A 400 V 2650 rpm 24 kW 86 Nm 41 A 456 V 2800 rpm 25 kW 85 Nm 41 A 480 V forced ventilation; direction of air flow DE–> NDE; IP55 degree of protection Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface Design IM B35 (IM V15, (IM V35) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
-

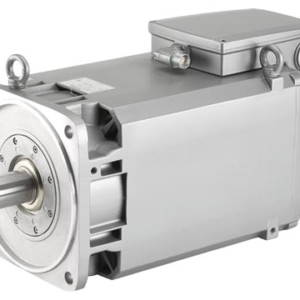

1PH8133-1JF03-2GB2-Z V90+X01 Siemens SIMOTICS M compact asynchronous motor 1500 r/min 15 kW 96 Nm 34 A 342 V 1750 r/min 17.5 kW 96 Nm 34 A 392 V 2000 r/min 20 kW 96 Nm 34 A 445 V 2200 r/min 22 kW 96 Nm 34 A 480 V forced ventilation; direction of air flow DE –> NDE; IP55 degree of protection Incremental encoder HTL 2048 S/R (encoder HTL2048S/R) With temperature sensor Pt1000 DESIGN IM B35 (IM V15, IM V35) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD, VIBRATION SEVERITY GRADE: R/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE LEFT SIGNAL CONNECTION D-END V90: shaft extension 42x 110 mm 1PH7-compatible X01: PAINT FINISH RAL 9005 (MATT BLACK)
-
1PH8133-1JG12-2BA1-Z V90 Siemens SIMOTICS M compact asynchronous motor 2000 r/min 20 kW 96 Nm 45 A 350 V 2300 r/min 22.5 kW 93 Nm 44 A 400 V 2650 r/min 24 kW 86 Nm 41 A 456 V 2800 r/min 25 kW 85 Nm 41 A 480 V forced ventilation; direction of air flow NDE–> DE; IP55 degree of protection Incremental encoder HTL 2048 S/R (encoder HTL2048S/R) With temperature sensor KTY 84-130 DESIGN IM B5 (IMV 1,IM V3) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END V90: shaft extension 42x 110 mm 1PH7-compatible
-
1PH8133-2DF12-0BC1 Siemens SIMOTICS M Compact synchronous motor 1500rpm, 19.9kW 127Nm, 44A, 316V 1750rpm, 23.1kW 126Nm, 43A, 366V 2000rpm, 26.2kW 125Nm, 43A, 415 V forced ventilation; direction of air flow NDE–> DE, Degree of protection IP55 Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT
-
1PH8133-2FF02-0BA1 Siemens SIMOTICS M Compact synchronous motor 1500rpm, 19.9kW 127Nm, 44A, 316V 1750rpm, 23.1kW 126Nm, 43A, 366V 2000rpm, 26.2kW 125Nm, 43A, 415 V forced ventilation; direction of air flow DE–> NDE; Degree of protection IP55 Absolute encoder 22-bit Single-turn and 12-bit multi-turn (encoder AM22DQ) with DRIVE-CLiQ interface DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
-
1PH8135-1AF03-1BA2 Siemens SIMOTICS M compact asynchronous motor 1500 rpm 18.5 kW 118 Nm 43 A 330 V 1750 rpm 21.5 kW 117 Nm 43 A 383 V 2000 rpm 24 kW 115 Nm 43 A 434 V 2200 rpm 26.4 kW 115 Nm 43 A 468 V forced ventilation; direction of air flow DE –> NDE; IP55 degree of protection Without encoder With temperature sensor Pt1000 Design IM B35 (IM V15, (IM V35) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
-
1PH8135-1DF13-2BA1 Siemens SIMOTICS M compact asynchronous motor 1500 rpm 18.5 kW 118 Nm 43 A 330 V 1750 rpm 21.5 kW 117 Nm 43 A 383 V 2000 rpm 24 kW 115 Nm 43 A 434 V 2200 rpm 26.4 kW 115 Nm 43 A 468 V forced ventilation; direction of air flow NDE–> DE; IP55 degree of protection Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface Design IM B35 (IM V15, (IM V35) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
