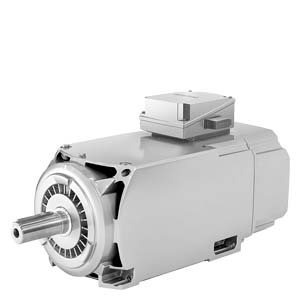

1PH8184-1MF10-1FB2-Z L76 Siemens SIMOTICS M Compact asynchronous motor 1500 rpm, 51kW, 325Nm,116A, 335V 1750 rpm, 60kW, 327Nm,120A, 390V 2000 rpm, 68kW, 325Nm,118A, 405V Forced ventilation Air flow direction NDE–>DE Degree of protection IP55 Incremental encoder sin/cos 1Vpp 2048 S/R with C and D track (encoder IC2048S/R) with Pt1000 temperature sensor Construction type IM B3 (IMB6, IMB7, IMB8, IMV6) Shaft with key Balancing with full key Bearing design: high Transverse forces Vibration class: R/A and flange design: R Terminal box (top) Cable entry at left signal cable connection DE L76: EC fan 3 AC 400 V 50/60 Hz
-
1PH8184-3DD00-2AA1 Siemens SIMOTICS M Compact induction motor 1000rpm, 39kW, 372Nm, 87A, 340V 1150rpm, 44 kW, 365Nm, 86A, 390V 1350rpm, 50 kW, 354Nm, 84A, 450 V forced ventilation Direction of air flow DE–>NDE Degree of protection IP55 Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
-
1PH8186-1DB03-2EC1 Siemens SIMOTICS M Compact induction motor 400 rpm, 21.3kW 506Nm, 65A, 268V 500rpm, 26.5kW 506Nm, 65A, 335V 600rpm, 32 kW 509Nm, 66A, 400 V forced ventilation Direction of air flow DE–>NDE Degree of protection IP55 Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface Design IM B35 with flange A450 (IM V35) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: GREATER CANTILEVER FORCES; VIBRATION SEVERITY GRADE A; SHAFT AND FLANGE ACCURACY GR. N TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION RIGHT
-
1PH8186-1DD00-2FB1-Z L27 Siemens SIMOTICS M compact asynchronous motor 1000 r/min, 51 kW 487 Nm, 112 A 340 V 1150 r/min, 58 kW 482 Nm, 112 A 390 V 1350 r/min, 67 kW 474 Nm, 112 A 450 V forced ventilation direction of air flow DE–>NDE IP55 degree of protection Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: GREATER CANTILEVER FORCES; VIBRATION SEVERITY GRADE R/A; SHAFT AND FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE LEFT SIGNAL CONNECTION D-END
-
1PH8186-1DD03-1AA1 Siemens SIMOTICS M compact asynchronous motor 1000 r/min, 51 kW 487 Nm, 112 A 340 V 1150 r/min, 58 kW 482 Nm, 112 A 390 V 1350 r/min, 67 kW 474 Nm, 112 A 450 V forced ventilation direction of air flow DE–>NDE IP55 degree of protection Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface Design IM B35 with flange A450 (IM V35) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE A; SHAFT A.FLANGE ACCURACY GR.N TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
-

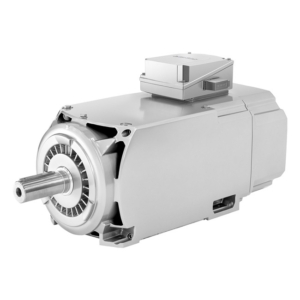

1PH8186-1DF00-2BA1 Siemens SIMOTICS M Compact induction motor 1500rpm, 74kW 471Nm, 166A, 330V 1750rpm, 85kW 464Nm, 164A, 385 V 2000rpm, 94kW 449Nm, 160 A, 445V forced ventilation Direction of air flow DE–>NDE Degree of protection IP55 Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
-
1PH8186-1HF03-1BA1-Z Siemens SIMOTICS M Compact induction motor 1500rpm, 74kW 471Nm, 166A, 330V 1750rpm, 85kW 464Nm, 164A, 385 V 2000rpm, 94kW 449Nm, 160 A, 445V forced ventilation Direction of air flow DE–>NDE Degree of protection IP55 Incremental encoder HTL 1024 S/R (encoder HTL1024S/R) With temperature sensor KTY 84-130 Design IM B35 with flange A450 (IM V35) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END K18: RADIAL SHAFT SEAL RING DRIVE END L00: NEXT BIGGER TERMINAL BOX (1XB7322 –> 1XB7422, 1XB7422 –> 1XB7700) L76: EC fan 400 V 3 AC 50/60 Hz
-
1PH8186-1JF10-2AA2-Z G14+L00+L27+L76+X01 Siemens SIMOTICS M compact asynchronous motor 1500 r/min, 74 kW, 471 Nm,166 A, 330 V 1750 r/min, 85 kW, 464 Nm, 164 A, 385 V 2000 r/min, 94 kW, 449 Nm, 160 A, 445 V forced ventilation direction of air flow NDE–>DE IP55 degree of protection Incremental encoder HTL 2048 S/R (encoder HTL2048S/R) With temperature sensor Pt1000 DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE A; SHAFT A.FLANGE ACCURACY GR.N TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END G14: fan set with air filter L00: next larger terminal box (1x B7322–> 1x B7422 1x B7422–> 1x B7700) L27: insulated version NDE bearing L76: EC fan 400 V 3 AC 50/60 Hz X01: paint finish in RAL 9005 (jet black)
-
1PH8224-2FC10-2AB1 Siemens SIMOTICS M compact synchronous motor 700 r/min, 48 kW, 655 Nm, 120 A, 256 V 800 r/min, 55 kW, 657 Nm, 120 A, 292 V 1000 r/min, 68 kW, 649 Nm, 118 A, 363 V forced ventilation direction of air flow NDE–>DE IP55 degree of protection Absolute encoder 22-bit Single-turn and 12-bit multi-turn (encoder AM22DQ) with DRIVE-CLiQ interface DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE A; SHAFT A.FLANGE ACCURACY GR.N TERMINAL BOX (ABOVE) CABLE ENTRY ON THE LEFT SIGNAL CONNECTION D-END
-

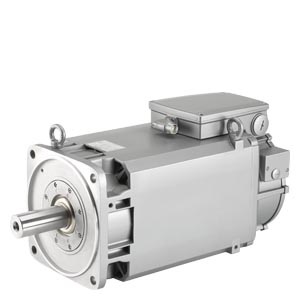

1PH8224-2FF10-2BA1 Siemens SIMOTICS M Compact synchronous motor 1500rpm, 101kW, 643Nm, 235A, 271V 1750rpm, 117kW, 638Nm, 235A, 315V 2000rpm, 118kW, 563Nm, 210A, 355V forced ventilation Direction of air flow NDE–>DE Degree of protection IP55 Absolute encoder 22-bit Single-turn and 12-bit multi-turn (encoder AM22DQ) with DRIVE-CLiQ interface DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
-
1PH8224-2FF10-2BB1 Siemens SIMOTICS M Compact synchronous motor 1500rpm, 101kW, 643Nm, 235A, 271V 1750rpm, 117kW, 638Nm, 235A, 315V 2000rpm, 118kW, 563Nm, 210A, 355V forced ventilation Direction of air flow NDE–>DE Degree of protection IP55 Absolute encoder 22-bit Single-turn and 12-bit multi-turn (encoder AM22DQ) with DRIVE-CLiQ interface DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE LEFT SIGNAL CONNECTION D-END
-

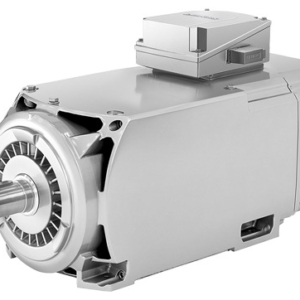

1PH8226-1DD20-1BA1-Z K23+K40+X12 Siemens SIMOTICS M Compact induction motor 1000 rpm, 115kW, 1098Nm, 235A, 340V 1150 rpm, 131kW, 1088Nm, 230A, 390V 1350 rpm, 150kW, 1061Nm, 225 A, 460 V water cooling Degree of protection IP55 Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
-
1PH8226-1HF30-2AA2 Siemens SIMOTICS M compact asynchronous motor 1500 r/min, 175 kW, 1114 Nm, 350 A, 340 V 1750 r/min, 200 kW, 1091 Nm, 350 A, 390 V 2000 r/min, 220 kW, 1051 Nm, 335 A, 450 V open-circuit ventilation direction of air flow DE–>NDE degree of protection IP23 Incremental encoder HTL 1024 S/R (encoder HTL1024S/R) With temperature sensor Pt1000 DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE A; SHAFT A.FLANGE ACCURACY GR.N TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
-
1PH8286-1DC40-2EU1-Z K24 Siemens SIMOTICS M Compact induction motor 700 rpm, 219 kW 2988 Nm, 455 A, 325 V 800 rpm, 250 kW 2984 Nm, 435 A, 385 V 1000 rpm, 310 kW 2961 Nm, 450 A, 460 V Through-flow ventilation Degree of protection IP23 22-bit incremental encoder with commutation position (encoder IC22DQ) with Drive-CLiQ interface IM B3 (IMV6) construction type Shaft with key Half-key balancing Bearing design: high Transverse forces Vibration class: A Shaft and flange accuracy: N NDE terminal box on the right Cable entry at the bottom Signal cable connection DE
-
1PH8288-1HF10-1BV2 Siemens SIMOTICS M compact asynchronous motor 1500 r/min, 320 kW, 2037 Nm, 620 A, 345 V 1750 r/min, 340 kW, 1856 Nm, 580 A, 400 V 2000 r/min, 385 kW, 1838 Nm, 570 A, 455 V forced ventilation IP55 degree of protection Incremental encoder HTL 1024 S/R (encoder HTL1024S/R) with temperature sensor Pt1000 DESIGN IM B3 (IMV6) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX NDE LEFT CABLE ENTRY BELOW SIGNAL CONNECTION D-END
-
1PH8352-1JB40-2EW2-Z K45 Siemens compact induction motor, ALM, 480 V, IP23, 77 dB(A) 460 kW, 600 r/min, 7322 Nm, 650 A SLM/BLM, 480 V, IP23, 77 dB(A) 420 kW, 550 r/min, 7293 Nm, 640 A Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions INKREMENTAL ENCODER (ENCODER HTL 2048 S/R) IM B3 DESIGN; Fitted key + half-key balancing Bearing version: Increased transverse forces; Vibration severity: A Shaft and flange accuracy N terminal box: NDE top cable outlet: right signal connector: OE
