Showing 25073–25088 of 208945 results
-
1PH8137-1DB12-2BA1 Siemens SIMOTICS M compact asynchronous motor 400 rpm 6.9 kW 165 Nm 18 A 323 V 500 rpm 8.6 kW 164 Nm 18 A 391 V 600 rpm 10.3 kW 164 Nm 18 A 458 V 700 rpm 11.5 kW 157 Nm 17.5 A 500 V forced ventilation; direction of air flow NDE–> DE; IP55 degree of protection Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface DESIGN IM B5 (IMV 1,IM V3) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
-

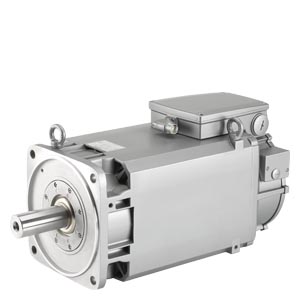

1PH8137-1DD02-2BA1-Z V90 Siemens SIMOTICS M compact asynchronous motor 1000 r/min 17 kW 162 Nm 43 A 307 V 1150 r/min 19.5 kW 162 Nm 43 A 350 V 1350 r/min 22 kW 156 Nm 42 A 404 V 1500 r/min 24 kW 153 Nm 41 A 447 V forced ventilation; direction of air flow DE–> NDE; IP55 degree of protection Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface DESIGN IM B5 (IMV 1,IM V3) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END V90: shaft extension 42x 110 mm 1PH7-compatible
-
1PH8137-1DF02-1BA1 Siemens SIMOTICS M compact asynchronous motor 1500 r/min 22 kW 140 Nm 56 A 308 V 1750 r/min 25 kW 136 Nm 56 A 352 V 2000 r/min 28 kW 134 Nm 55 A 401 V 2200 r/min 30 kW 130 Nm 53 A 440 V forced ventilation; direction of air flow DE–> NDE; IP55 degree of protection INCREMENTAL ENCODER 22 BIT WITH COMMUTATING POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
-
1PH8137-1DG10-2FA1 Siemens SIMOTICS M compact asynchronous motor 2000 r/min 28 kW 134 Nm 60 A 350 V 2300 r/min 29 kW 120 Nm 56 A 398 V 2650 r/min 30 kW 108 Nm 52 A 460 V 2800 r/min 31 kW 106 Nm 52 A 494 V forced ventilation; direction of air flow NDE–> DE; IP55 degree of protection Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: INCREASED RADIAL FORCES, VIBRATION SEVERITY GRADE: R/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
-
1PH8137-1HG02-2BA2 Siemens SIMOTICS M compact asynchronous motor 2000 r/min 28 kW 134 Nm 60 A 350 V 2300 r/min 29 kW 120 Nm 56 A 398 V 2650 r/min 30 kW 108 Nm 52 A 460 V 2800 r/min 31 kW 106 Nm 52 A 494 V forced ventilation; direction of air flow DE –> NDE; IP55 degree of protection Incremental encoder HTL 1024 S/R (encoder HTL1024S/R) With temperature sensor Pt1000 DESIGN IM B5 (IMV 1,IM V3) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
-
1PH8137-1HG03-2BB1 Siemens SIMOTICS M compact asynchronous motor 2000 r/min 28 kW 134 Nm 60 A 350 V 2300 r/min 29 kW 120 Nm 56 A 398 V 2650 r/min 30 kW 108 Nm 52 A 460 V 2800 r/min 31 kW 106 Nm 52 A 494 V forced ventilation; direction of air flow DE–> NDE; IP55 degree of protection Incremental encoder HTL 1024 S/R (encoder HTL1024S/R) With temperature sensor KTY 84-130 Design IM B35 (IM V15, (IM V35) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE LEFT SIGNAL CONNECTION D-END
-
1PH8137-1HG03-2BB2 Siemens SIMOTICS M compact asynchronous motor 2000 r/min 28 kW 134 Nm 60 A 350 V 2300 r/min 29 kW 120 Nm 56 A 398 V 2650 r/min 30 kW 108 Nm 52 A 460 V 2800 r/min 31 kW 106 Nm 52 A 494 V forced ventilation; direction of air flow DE –> NDE; IP55 degree of protection Incremental encoder HTL 1024 S/R (encoder HTL1024S/R) With temperature sensor Pt1000 Design IM B35 (IM V15, (IM V35) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE LEFT SIGNAL CONNECTION D-END
-
1PH8137-3HF03-0AA2-Z U66 Siemens SIMOTICS M compact asynchronous motor 1500 r/min 22 kW 140 Nm 56 A 308 V 1750 r/min 25 kW 136 Nm 56 A 352 V 2000 r/min 28 kW 134 Nm 55 A 401 V 2200 r/min 30 kW 130 Nm 53 A 440 V forced ventilation; direction of air flow DE –> NDE; IP55 degree of protection Incremental encoder HTL 1024 S/R (encoder HTL1024S/R) With temperature sensor Pt1000 Design IM B35 (IM V15, (IM V35) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD VIBRATION SEVERITY GRADE A; SHAFT A.FLANGE ACCURACY GR.N TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END U66: holding brake 24 V DC with microswitch
-
1PH8137-3MF02-2AA2-Z K23+U65+X53+Y84 Siemens SIMOTICS M motore asincrono compatto 1500 r/min 22kW 140Nm 56A 308V 1750 r/min 25kW 136Nm 56A 352V 2000 r/min 28kW 134Nm 55A 401V 2200 r/min 30kW 130Nm 53A 440V ventilazione forzata; direzione flusso aria DE –> NDE; grado di protezione IP55 trasduttore incrementale sen/cos 1Vpp 2048 S/R con traccia C e D (encoder IC2048S/R) con sensore di temperatura Pt1000 forma costruttiva IM B5 (IMV 1, IM V3) albero con chiavetta equilibratura con mezza chiavetta esecuzione del cuscinetto: standard qualità vibratoria: A; precisione dell’albero e della flangia: N morsettiera (in alto) ingresso cavi a destra collegamento del cavo di segnale DE K23: verniciatura speciale Worldwide U65: freno di stazionamento DC 24 V X53: verniciatura in RAL7035 (grigio chiaro) Y84: indicazioni del cliente sulla targhetta dei dati tecnici (max. 30 caratteri)
-
1PH8138-2DF20-1GD1 Siemens SIMOTICS M compact synchronous motor 1500 r/min, 44.9 kW 286 Nm, 118 A, 316 V 1750 r/min, 52.4 kW 286 Nm, 118 A, 366 V 2000 r/min, 59.7 kW 285 Nm, 118 A, 416 V water cooling degree of protection IP65 Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD, VIBRATION SEVERITY GRADE: R/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE D-END SIGNAL CONNECTION LEFT
-
1PH8138-2EF22-1BB1 Siemens SIMOTICS M compact synchronous motor 1500 r/min, 44.9 kW 286 Nm, 118 A, 316 V 1750 r/min, 52.4 kW 286 Nm, 118 A, 366 V 2000 r/min, 59.7 kW 285 Nm, 118 A, 416 V water cooling degree of protection IP65 ABSOLUTE ENCODER ENDAT 2048 S/R (ENCODER AM2048S/R) with TEMPERAT. SENSOR KTY84-130 DESIGN IM B5 (IMV 1,IM V3) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE LEFT SIGNAL CONNECTION D-END
-
1PH8163-1AF13-2BA2 Siemens SIMOTICS M compact asynchronous motor 1500 rpm 30 kW 191 Nm 71 A 319 V 1750 rpm 34 kW 186 Nm 70 A 366 V 2000 rpm 37 kW 177 Nm 68 A 416 V 2200 rpm 40.7 kW 177 Nm 68 A 456 V forced ventilation; direction of air flow NDE –> DE; IP55 degree of protection W/O ENCODER with TEMPERAT. SENSOR PT1000 Design IM B35 (IM V15, (IM V35) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE R/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
-
1PH8163-1HF00-2GA2 Siemens SIMOTICS M compact asynchronous motor 1500 r/min 30 kW 191 Nm 71 A 319 V 1750 r/min 34 kW 186 Nm 70 A 366 V 2000 r/min 37 kW 177 Nm 68 A 416 V 2200 r/min 40.7 kW 177 Nm 68 A 456 V forced ventilation; direction of air flow DE –> NDE; IP55 degree of protection INCREMENT. ENCODER HTL 1024 S/R (ENCODER HTL1024S/R) TEMPERATURE SENSOR Pt1000 DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD, VIBRATION SEVERITY GRADE R/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
-
1PH8165-1AF00-1GC2 Siemens SIMOTICS M compact asynchronous motor 1500 r/min 37 kW 236 Nm 78 A 350 V 1750 r/min 41 kW 224 Nm 76 A 400 V 2000 r/min 45 kW 215 Nm 75 A 440 V 2200 r/min 49.5 kW 215 Nm 75 A 493 V forced ventilation; direction of air flow DE –> NDE; IP55 degree of protection W/O ENCODER with TEMPERAT. SENSOR PT1000 DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD, VIBRATION SEVERITY GRADE R/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT
-
1PH8165-1DD00-1BA1 Siemens SIMOTICS M compact asynchronous motor 1000 rpm 28 kW 267 Nm 71 A 292 V 1150 rpm 31 kW 257 Nm 69 A 333 V 1350 rpm 34 kW 241 Nm 66 A 387 V 1500 rpm 37.7 kW 240 Nm 65 A 430 V forced ventilation; direction of air flow DE–> NDE; IP55 degree of protection Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE R/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
-
1PH8165-1DF00-1FA1 Siemens SIMOTICS M compact asynchronous motor 1500 rpm 37 kW 236 Nm 78 A 350 V 1750 rpm 41 kW 224 Nm 76 A 400 V 2000 rpm 45 kW 215 Nm 75 A 440 V 2200 rpm 49.5 kW 215 Nm 75 A 493 V forced ventilation; direction of air flow DE–> NDE; IP55 degree of protection Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: INCREASED RADIAL FORCES, VIBRATION SEVERITY GRADE R/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
