Showing 24673–24688 of 208945 results
-
1LE1023-0DB22-2FB4 Siemens GP motor type: 1AV3082B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) aluminum enclosure IE3, NEMA Premium, CSA, UL, 4-pole * size 80M * 0.55 kW (50 Hz) NEMA 60 Hz: 0.75 HP standard color RAL 7030 if no order code is specified for selecting another color. Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions 3 AC 50 Hz 230 VD/400 VY * 3 AC 60 Hz 460 VY IM B 5, flange: FF165 (A200) 1 PTC thermistor for disconnection (2 terminals) Terminal box at top
-
1LE1023-0DB32-2FA4 Siemens GP motor type: 1AV3083B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) aluminum enclosure IE3, NEMA Premium, CSA, UL, 4-pole * size 80M * 0.75 kW (50 Hz) NEMA 60 Hz: 1 HP standard color RAL 7030 if no order code is specified for selecting another color. Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions 3 AC 50 Hz 230 VD/400 VY * 3 AC 60 Hz 460 VY IM B 5, flange: FF165 (A200) without motor protection Terminal box at top
-
1LE1023-0EB42-3FA4 Siemens SIMOTICS GP motor type: 1AV3094B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) aluminum enclosure IE3, NEMA Premium, CSA, UL, 4-pole * size 90L * 1.5 kW (50 Hz) NEMA 60 Hz: 2 HP standard color RAL 7030 if no order code is specified for selecting another color; this product will show either Siemens or Innomotics as manufacturer. 3 AC 50 Hz 240 VD/415 VY 3 AC 60 Hz 480 VY IM B 5, flange: FF165 (A200) without motor protection Terminal box at top
-
1LE1023-0EB43-5AB4-Z B02+G11+S02+Y56 Siemens GP motor type: 1AV3094B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) aluminum enclosure IE3, NEMA Premium, CSA, UL, 4-pole * size 90L * 1.5 kW (50 Hz) NEMA 60 Hz: 2 HP standard color RAL 7030 if no order code is specified for selecting another color. The product will be delivered with either the Siemens or Innomotics product brand. 3 AC 50Hz 415VD * 3 AC 60 Hz 480 VD IM B 3, 1 PTC thermistor for disconnection (2 terminals) Terminal box at top B02=Acceptance test certificate 3.1 according to EN 10204 G11=Built-on encoder Kübler Sendix 5020 HTL, 1024 I S02=Special paint finish Y56=Paint finish in other RAL colors (for selection see catalog) RAL..
-
1LE1023-0EB49-0KA4 M1Y Siemens GP motor type: 1AV3094B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) aluminum enclosure IE3, NEMA Premium, CSA, UL, 4-pole * size 90L * 1.5 kW (50 Hz) NEMA 60 Hz: 2 HP standard color RAL 7030 if no order code is specified for selecting another color. Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions Non-standard winding 3 AC..Hz,…V,…kW IM B 14, Standard flange: FT115 (C140) without motor protection Terminal box at top
-
1LE1023-1AB42-2FB4 Siemens GP motor type: 1AV3104B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) aluminum enclosure IE3, NEMA Premium, CSA, UL, 4-pole * size 100L * 2.2 kW (50 Hz) NEMA 60 Hz: 3 HP standard color RAL 7030 if no order code is specified for selecting another color. Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions 3 AC 50 Hz 230 VD/400 VY * 3 AC 60 Hz 460 VY IM B 5, flange: FF215 (A250) 3 PTC thermistors for disconnection (2 terminals) Terminal box at top
-
1LE1023-1AB42-3FB4 Siemens SIMOTICS GP motor type: 1AV3104B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) aluminum enclosure IE3, NEMA Premium, CSA, UL, 4-pole * size 100L * 2.2 kW (50 Hz) NEMA 60 Hz: 3 HP standard color RAL 7030 if no order code is specified for selecting another color; this product will show either Siemens or Innomotics as manufacturer. 3 AC 50 Hz 240 VD/415 VY 3 AC 60 Hz 480 VY IM B 5, flange: FF215 (A250) 3 PTC thermistors for disconnection (2 terminals) Terminal box at top
-
1LE1023-1AB43-5FB4-Z B02+F70+G11+S02+S05+Y53 Siemens GP motor type: 1AV3104B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) aluminum enclosure IE3, NEMA Premium, CSA, UL, 4-pole * size 100L * 2.2 kW (50 Hz) NEMA 60 Hz: 3 HP standard color RAL 7030 if no order code is specified for selecting another color. The product will be delivered with either the Siemens or Innomotics product brand. 3 AC 50Hz 415VD * 3 AC 60 Hz 480 VD IM B 5, flange: FF215 (A250) 3 PTC thermistors for disconnection (2 terminals) Terminal box at top B02=Acceptance test certificate 3.1 according to EN 10204 F70=Mounting of external fan G11=Built-on encoder Kübler Sendix 5020 HTL, 1024 I S02=Special paint finish S05=Internal coating (metal parts, rotor and stator) Y53=Paint finish in other standard RAL colors (for selection see catalog) RAL..
-
1LE1023-1BA22-2FA4 Siemens GP motor type: 1AV3112A low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) aluminum enclosure IE3, NEMA Premium, CSA, UL, 2-pole * size 112M, * 4 kW (50 Hz) NEMA 60 Hz: 5 HP standard color RAL 7030 if no order code is specified for selecting another color. The product will be delivered with either the Siemens or Innomotics product brand. 3 AC 50 Hz 230 VD/400 VY * 3 AC 60 Hz 460 VY IM B 5, flange: FF215 (A250) without motor protection Terminal box at top
-
1LE1023-1BB22-2FB4 Siemens GP motor type: 1AV3112B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) aluminum enclosure IE3, NEMA Premium, CSA, UL, 4-pole * size 112M, * 4 kW (50 Hz) NEMA 60 Hz: 5 HP standard color RAL 7030 if no order code is specified for selecting another color. Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions 3 AC 50 Hz 230 VD/400 VY * 3 AC 60 Hz 460 VY IM B 5, flange: FF215 (A250) 3 PTC thermistors for disconnection (2 terminals) Terminal box at top
-
1LE1023-1BB29-0FA4-Z Siemens GP motor type: 1AV3112B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) aluminum enclosure IE3, NEMA Premium, CSA, UL, 4-pole * size 112M, * 4 kW (50 Hz) NEMA 60 Hz: 5 HP standard color RAL 7030 if no order code is specified for selecting another color. The product will be delivered with either the Siemens or Innomotics product brand.
-
1LE1023-1CA03-4FB4 Siemens GP motor type: 1AV3130A low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) aluminum enclosure IE3, NEMA Premium, CSA, UL, 2-pole * size 132S, * 5.5 kW (50 Hz) NEMA 60 Hz: 7.5 HP, 60 Hz P60: IE2, standard color RAL 7030 if no order code is specified for selecting another color. Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions 3 AC 50Hz 400VD* 3 AC 60 Hz 460 VD IM B 5, flange: FF265 (A300) 3 PTC thermistors for disconnection (2 terminals) Terminal box at top
-
1LE1023-1CB03-4FB4-Z Siemens GP motor type: 1AV3130B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) aluminum enclosure IE3, NEMA Premium, CSA, UL, 4-pole * size 132S, * 5.5 kW (50 Hz) NEMA 60 Hz: 7.5 HP standard color RAL 7030 if no order code is specified for selecting another color. Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions 3 AC 50Hz 400VD* 3 AC 60 Hz 460 VD IM B 5, flange: FF265 (A300) 3 PTC thermistors for disconnection (2 terminals) Terminal box at top F01=built-on holding brake F10=Brake control voltage 24 V DC
-

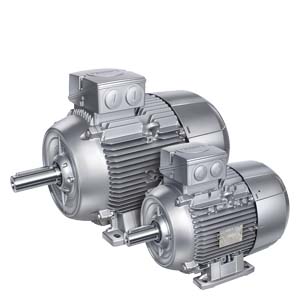

1LE1023-1DA23-5AA4 Siemens GP motor type: 1AV3162A low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) aluminum enclosure IE3, NEMA Premium, CSA, UL, 2-pole * size 160M, * 11 kW (50 Hz) NEMA 60 Hz: 15 HP standard color RAL 7030 if no order code is specified for selecting another color. The product will be delivered with either the Siemens or Innomotics product brand. 3 AC 50Hz 415VD * 3 AC 60 Hz 480 VD IM B 3, without motor protection Terminal box at top
-
1LE1023-1DA33-4AA4 Siemens GP motor type: 1AV3163A low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) aluminum enclosure IE3, NEMA Premium, CSA, UL, 2-pole * size 160M, * 15 kW (50 Hz) NEMA 60 Hz: 20 HP standard color RAL 7030 if no order code is specified for selecting another color. The product will be delivered with either the Siemens or Innomotics product brand. 3 AC 50Hz 400VD* 3 AC 60 Hz 460 VD IM B 3, without motor protection Terminal box at top
-

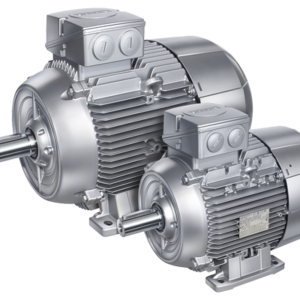

1LE1023-1DB22-2FA4 Siemens SIMOTICS GP motor type: 1AV3162B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) aluminum enclosure IE3, NEMA Premium, CSA, UL, 4-pole * frame size 160M, * 11 kW (50 Hz) NEMA 60 Hz: 15 HP standard color RAL 7030, if no order code is specified for selecting another color. 3 AC 50 Hz 230 VD/400 VY * 3 AC 60 Hz 460 VY IM B 5, flange: FF300 (A350) without motor protection Terminal box at top
