Showing 24705–24720 of 208945 results
-
1LE1501-2DB23-4AA4-Z L22+L51+Y66 Siemens SD motor type: 1CV2282B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line High Efficiency IE2, in EEA: minimum efficiency according to (EU) 2019/1781 is IE3 (as of 01.07.2021) 4-pole * size 280M * 90 kW (50 Hz) 104 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color. Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B 3, without motor protection Terminal box at top
-
1LE1501-3AD23-4AH4-Z D22+F70+G04+L22+L51 Siemens motor type SD: 1CV2312D low-voltage motor, IEC cage rotor, naturally cooled, IP55 temperature class 155(F) according to 130(B) grey cast iron housing Basic line High Efficiency IE2, in the European Economic Area: the minimum efficiency according to (EU) 2019/1781 is IE3 (as of 01/07/2021) 8-pole * grand. const. 315M, * 75kW (50Hz) 90kW (60Hz) standard colour RAL 7030, if no other colour has been selected using a short abbreviation. 3 AC 50HZ 400VD/690VY * 3 AC 60HZ 460VD IM B 3, 3 resistance thermometers Pt100 2-wire connection (6 terminals) terminal block at the top D22=motor without CE mark for export outside the EEA (see EU Ordinance 2019/1781) F70=Mounting of external fan G04=Attached mounting of rotary transducer LL 861 900 220, 1024 I (LEINE & LINDE) 1024 pulses per revolution Costs of installation with device L22=bearings for high transverse forces L51=Insulation of the bearing on NDE(BS)
-
1LE1502-1DB23-4AA4-Z Siemens SD motor type: 1CV1162B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP 55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line Standard Efficiency IE1, in EEA: minimum efficiency according to (EU) 2019/1781 is IE3 (as of 01.07.2021) 4-pole * size 160M * 11 kW (50 Hz) 12.6 kW(60 Hz)
-
1LE1502-2AB53-4AA4 Siemens SIMOTICS SD motor type: 1CV1205B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line IE1 in EEA: minimum efficiency according to (EU) 2019/1781 is IE3 (as of 01.07.2021) 4-pole * size 200L, * 30 kW (50 Hz) 34.5 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color; this product will show either Siemens or Innomotics as manufacturer. 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B 3, without motor protection Terminal box at top
-

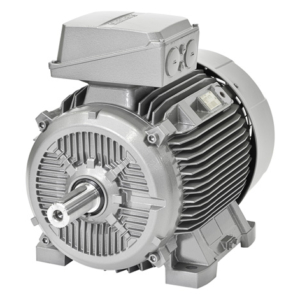

1LE1502-3AB03-4VB5-Z D22+L22+F74 Siemens SIMOTICS SD motor type: 1CV1312B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing basic line IE1 in EEA: minimum efficiency according to (EU) 2019/1781 is IE3 (as of 01.07.2021) 4-pole * size 315M, * 132 kW (50 Hz) 152 kW (60 Hz) standard color RAL 7030, if no order code is specified for selecting another color. 3 AC 50Hz 400VD * 3 AC 60 Hz 460 VD IM B 3, 1 KTY84-130 temperature sensor (2 terminals) Terminal box at top D22=Motor without CE mark for export outside of EEA (see EU Directive 2019/1781) L22=Bearing for increased transverse forces L51=Bearing insulation NDE
-
1LE1502-3AB23-4AA4 Siemens SIMOTICS SD motor type: 1CV1312B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line IE1 in EEA: minimum efficiency according to (EU) 2019/1781 is IE3 (as of 01.07.2021) 4-pole * size 315M, * 132 kW (50 Hz) 152 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color; this product will show either Siemens or Innomotics as manufacturer. 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B 3, without motor protection Terminal box at top
-
1LE1503-0CB33-4FA4 Siemens SD motor type: 1CV3073B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line Premium Efficiency IE3, 4-pole * size 71M * 0.37 kW (50 Hz) 0.43 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color. The product will be delivered with either the Siemens or Innomotics product brand. 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B 5, flange: FF130 (A160) without motor protection Terminal box at top
-
1LE1503-0DB32-2MA4-Z Siemens SIMOTICS SD motor type: 1CV3083B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line Premium Efficiency IE3, 4-pole * frame size 80M * 0.75 kW (50 Hz) 0.86 kW (60 Hz) standard color RAL 7030, if no order code is specified for selecting another color.
-
1LE1503-0EB02-1AA4 Siemens SD motor type: 1CV3090B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line Premium Efficiency IE3, 4-pole * size 90S * 1.1 kW (50 Hz) 1.27 kW (60 Hz) 60 Hz, P60: IE2 standard color RAL 7030 if no order code is specified for selecting another color. Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions 3 AC 50 Hz 220 VD/380 VY 3 AC 60 Hz 440 VY IM B 3, without motor protection Terminal box at top
-
1LE1503-0EB02-1FA4 Siemens SD motor type: 1CV3090B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line Premium Efficiency IE3, 4-pole * size 90S * 1.1 kW (50 Hz) 1.27 kW (60 Hz) 60 Hz, P60: IE2 standard color RAL 7030 if no order code is specified for selecting another color. The product will be delivered with either the Siemens or Innomotics product brand. 3 AC 50 Hz 220 VD/380 VY 3 AC 60 Hz 440 VY IM B 5, flange: FF165 (A200) without motor protection Terminal box at top
-
1LE1503-1AB43-4GB4-Z Siemens SD motor type: 1CV3104B low voltage motor, IEC cage rotor, naturally cooled, IP55 temperature class 155(F) according to 130(B) Basic line Premium Efficiency IE3 grey cast iron housing, 4-pole * large. const. 100L * 2.2kW (50Hz) 2.55kW (60Hz) RAL 7030 standard colour, if no other colour has been selected by means of a short abbreviation. For the marketing of this product, the Terms and Conditions of Innomotics apply exclusively, see https://www.innomotics.com/ terms-and-conditions
-
1LE1503-1AB49-0GA4 Siemens SD motor type: 1CV3104B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line Premium Efficiency IE3, 4-pole * size 100L * 2.2 kW (50 Hz) 2.55 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color. Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions
-
1LE1503-1BA23-4FA4 Siemens SD motor type: 1CV3112A low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line Premium Efficiency IE3, 2-pole * size 112M, * 4 kW (50 Hz) 4.55 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color. The product will be delivered with either the Siemens or Innomotics product brand. 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B 5, flange: FF215 (A250) without motor protection Terminal box at top
-
1LE1503-1BB23-3GA4-Z H00+L25+N03 Siemens motor type SD: 1CV3112B low-voltage motor, IEC cage rotor, naturally cooled, IP55 temperature class 155(F) according to 130(B) Basic line Premium Efficiency IE3 grey cast iron housing, 4-pole * large. const. 112M, * 4kW (50Hz) 4.55kW (60Hz) standard colour RAL 7030, if no other colour has been selected using a short abbreviation. For the marketing of this product, the Terms and Conditions of Innomotics apply exclusively, see https://www.innomotics.com/ terms-and-conditions 3 AC 50HZ 380VD/660VY * 3 AC 60HZ 440VD IM V 1 without protective cover, flange: FF215 (A250) without motor protection terminal block at the top H00=Protective cover L25=reinforced on both sides, bearing for side DE (AS) and NDE (BS) bearing size 63 N03=Temperature class 155 (F), use according to 155 (F), with high coolant temperature .
-

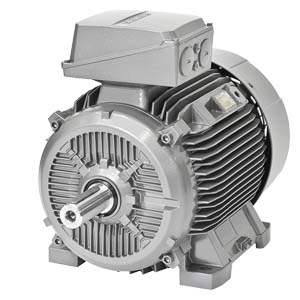

1LE1503-1CA03-4AA4 Siemens SD motor type: 1CV3130A low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line Premium Efficiency IE3, 2-pole * size 132S, * 5.5 kW (50 Hz) 6.3 kW (60 Hz) 60 Hz, P60: IE2 standard color RAL 7030 if no order code is specified for selecting another color. Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B 3, without motor protection Terminal box at top
-
1LE1503-1CA13-4FA4 Siemens SD motor type: 1CV3131A low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line Premium Efficiency IE3, 2-pole * size 132S, * 7.5 kW (50 Hz) 8.6 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color. The product will be delivered with either the Siemens or Innomotics product brand. 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B 5, flange: FF265 (A300) without motor protection Terminal box at top
