Showing 24689–24704 of 208945 results
-
1LE1023-1DB23-3FA4 Siemens GP motor type: 1AV3162B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) aluminum enclosure IE3, NEMA Premium, CSA, UL, 4-pole * size 160M, * 11 kW (50 Hz) NEMA 60 Hz: 15 HP standard color RAL 7030 if no order code is specified for selecting another color. The product will be delivered with either the Siemens or Innomotics product brand. 3 AC 50Hz 380VD 3 AC 60 Hz 440 VD IM B 5, flange: FF300 (A350) without motor protection Terminal box at top
-
1LE1023-1DB23-4AA4 Siemens GP motor type: 1AV3162B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) aluminum enclosure IE3, NEMA Premium, CSA, UL, 4-pole * size 160M, * 11 kW (50 Hz) NEMA 60 Hz: 15 HP standard color RAL 7030 if no order code is specified for selecting another color. Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions 3 AC 50Hz 400VD* 3 AC 60 Hz 460 VD IM B 3, without motor protection Terminal box at top
-

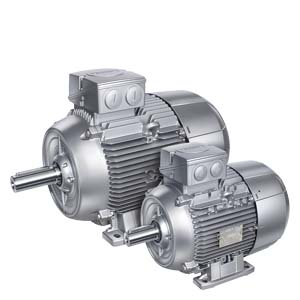

1LE1023-1DB23-5AA4 Siemens GP motor type: 1AV3162B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) aluminum enclosure IE3, NEMA Premium, CSA, UL, 4-pole * size 160M, * 11 kW (50 Hz) NEMA 60 Hz: 15 HP standard color RAL 7030 if no order code is specified for selecting another color. The product will be delivered with either the Siemens or Innomotics product brand. 3 AC 50Hz 415VD * 3 AC 60 Hz 480 VD IM B 3, without motor protection Terminal box at top
-
1LE1023-1DC43-4AA4 Siemens SIMOTICS GP motor type: 1AV3164C low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) aluminum enclosure IE3, NEMA Premium, CSA, UL, 6-pole * frame size 160L, * 11 kW (50 Hz) NEMA 60 Hz: 15 HP 60 Hz, P60: IE2 standard color RAL 7030, if no order code is specified for selecting another color. 3 AC 50Hz 400VD* 3 AC 60 Hz 460 VD IM B 3, without motor protection Terminal box at top
-
1LE1501-1BB23-3JA4 Siemens SIMOTICS SD motor type: 1CV2112B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line in EEA: minimum efficiency according to (EU) 2019/1781 is IE3 (as of 01.07.2021) High Efficiency IE2, 4-pole * size 112M, * 4 kW (50 Hz) 4.55 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color; this product will show either Siemens or Innomotics as manufacturer. 3 AC 50 Hz 380 VD/660 VY * 3 AC 60 Hz 440 VD IM B 35 * Flange: FF215 (A250) without motor protection Terminal box at top
-
1LE1501-1EB23-4AA4 Siemens SD motor type: 1CV2182B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line High Efficiency IE2, in EEA: minimum efficiency according to (EU) 2019/1781 is IE3 (as of 01.07.2021) 4-pole * size 180M, * 18.5 kW (50 Hz) 21.3 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color. Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B 3, without motor protection Terminal box at top
-
1LE1501-2AA43-4AA4 Siemens SIMOTICS SD motor type: 1CV2204A low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line High Efficiency IE2, in EEA: minimum efficiency according to (EU) 2019/1781 is IE3 (as of 01.07.2021) 2-pole * size 200L, * 30 kW (50 Hz) 33.5 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color; this product will show either Siemens or Innomotics as manufacturer. 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B 3, without motor protection Terminal box at top
-
1LE1501-2AB53-3JB4-Z N05+N31 Siemens SD motor type: 1CV2205B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line High Efficiency IE2, in EEA: minimum efficiency according to (EU) 2019/1781 is IE3 (as of 01.07.2021) 4-pole * size 200L, * 30 kW (50 Hz) 34.5 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color. Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions 3 AC 50 Hz 380 VD/660 VY * 3 AC 60 Hz 440 VD IM B 35 * Flange: FF350 (A400) 3 PTC thermistors for disconnection (2 terminals) Terminal box at top N05=Temperature class 155 (F), utilized according to 130(B), coolant temperature 45 degrees, derating approx. 4% N31=Increased humidity/temp. with 60 to 100 g water per m3 air
-
1LE1501-2AD53-4DA4 Siemens SD motor type: 1CV2205D low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line High Efficiency IE2, in EEA: minimum efficiency according to (EU) 2019/1781 is IE3 (as of 01.07.2021) 8-pole * size 200L, * 15 kW (50 Hz) 18 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color. Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM V 6, without motor protection Terminal box at top
-
1LE1501-2BB03-4AA4 Siemens SD motor type: 1CV2220B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line High Efficiency IE2, in EEA: minimum efficiency according to (EU) 2019/1781 is IE3 (as of 01.07.2021) 4-pole * size 225S * 37 kW (50 Hz) 42.5 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color. The product will be delivered with either the Siemens or Innomotics product brand. 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B 3, without motor protection Terminal box at top
-
1LE1501-2BB03-4AB4 Siemens SD motor type: 1CV2220B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line High Efficiency IE2, in EEA: minimum efficiency according to (EU) 2019/1781 is IE3 (as of 01.07.2021) 4-pole * size 225S * 37 kW (50 Hz) 42.5 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color. Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B 3, 3 PTC thermistors for disconnection (2 terminals) Terminal box at top
-
1LE1501-2BB20-2AA4 Siemens SIMOTICS SD motor type: 1CV2222B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line High Efficiency IE2, in EEA: minimum efficiency according to (EU) 2019/1781 is IE3 (as of 01.07.2021) 4-pole * size 225M * 45 kW (50 Hz) 52 kW (60 Hz) standard color RAL 7030, if no order code is specified for selecting another color. 3 AC 50Hz 400VY * 3 AC 60 Hz 460 VY IM B 3, without motor protection Terminal box at top
-

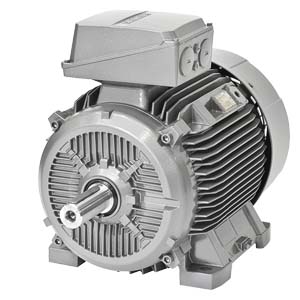

1LE1501-2CA23-4AA4 Siemens SD motor type: 1CV2252A low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line High Efficiency IE2, in EEA: minimum efficiency according to (EU) 2019/1781 is IE3 (as of 01.07.2021) 2-pole * size 250M * 55 kW (50 Hz) 62 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color. The product will be delivered with either the Siemens or Innomotics product brand. 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B3 without motor protection Terminal box at top
-
1LE1501-2CB23-4AB4 Siemens SD motor type: 1CV2252B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line High Efficiency IE2, in EEA: minimum efficiency according to (EU) 2019/1781 is IE3 (as of 01.07.2021) 4-pole * size 250M * 55 kW (50 Hz) 63 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color. The product will be delivered with either the Siemens or Innomotics product brand. 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B3 3 PTC thermistors for disconnection (2 terminals) Terminal box at top
-
1LE1501-2CC23-4AH4-Z D22+F70+G04 Siemens motor type SD: 1CV2252C low-voltage motor, IEC cage rotor, naturally cooled, IP55 temperature class 155(F) according to 130(B) grey cast iron housing Basic line High Efficiency IE2, 60Hz, P60: IE1 in the European Economic Area: the minimum efficiency according to (EU) 2019/1781 is IE3 (as of 01/07/2021) 6-pole * grand. const. 250M * 37kW (50Hz) 44.5kW (60Hz) RAL 7030 standard colour, if no other colour has been selected by means of a short abbreviation. 3 AC 50HZ 400VD/690VY * 3 AC 60HZ 460VD IM B3 3 RTDs Pt100 2-wire connection (6 terminals) terminal block at the top D22=motor without CE marking for export outside the EEA (see EU Ordinance 2019/1781) F70=External fan mounting G04=Attached mounting of rotary transducer LL 861 900 220, 1024 I (LEINE & LINDE) 1024 pulses per revolution Installation costs with device
-
1LE1501-2DB23-4AA4 Siemens SD motor type: 1CV2282B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line High Efficiency IE2, in EEA: minimum efficiency according to (EU) 2019/1781 is IE3 (as of 01.07.2021) 4-pole * size 280M * 90 kW (50 Hz) 104 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color. The product will be delivered with either the Siemens or Innomotics product brand. 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B 3, without motor protection Terminal box at top
