Showing 24721–24736 of 208945 results
-
1LE1503-1CB02-2KA4-Z Siemens SD motor type: 1CV3130B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line Premium Efficiency IE3, 4-pole * size 132S, * 5.5 kW (50 Hz) 6.3 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color
-

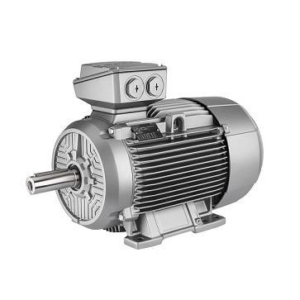

1LE1503-1CB03-5FA4-Z Siemens SIMOTICS SD motor type: 1CV3130B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line Premium Efficiency IE3, 60 Hz, P60: IE2 4-pole * frame size 132S, * 5.5 kW (50 Hz) 6.3 kW (60 Hz) standard color RAL 7030, if no order code is specified for selecting another color. 3 AC 50Hz 415VD * 3 AC 60 Hz 480 VD IM B 5, flange: FF265 (A300) without motor protection Terminal box at top B02=Acceptance test certificate 3.1 according to EN 10204 F74=Sheet metal fan cover N06=Temperature class 155 (F), utilized according to 130(B)
-
1LE1503-1CB09-0AB6-Z B02+F70+G11+M1F+N06+Y80 Siemens motor type SD: 1CV3130B low voltage motor, IEC squirrel cage rotor, naturally cooled, IP55 temperature class 155(F) according to 130(B) grey cast iron housing Basic line Premium Efficiency IE3, 4-pole * size 132S, * 5.5kW (50Hz) 6.3kW (60Hz) standard colour RAL 7030, unless another colour has been selected via short code. The Innomotics Terms and Conditions apply exclusively to the marketing of this product, see https://www.innomotics.com/ terms-and-conditions 3 AC 60Hz 460VD * Power 60 Hz IM B 3, 3 PTC thermistors for shutdown (2 terminals) terminal strip on the left side B02=test certificate 3.1 according to EN 10204 F70=installation of external fan G11=installation of rotary encoder Kübler Sendix 5020 HTL, 1024 I N06=Temperature class 155 (F), use according to 130(B), Coolant temperature 50 °, Power reduction approx. 8 % Y80=additional rating plate with deviating technical data
-
1LE1503-1CB23-4AA4 Siemens SD motor type: 1CV3132B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line Premium Efficiency IE3, 60 Hz, P60: IE2 4-pole * size 132M, * 7.5 kW (50 Hz) 8.6 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color. Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B 3, without motor protection Terminal box at top
-

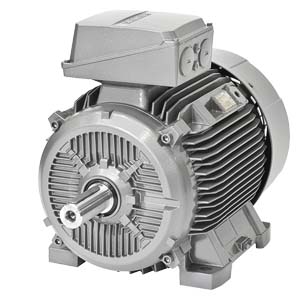

1LE1503-1DA23-4AA4 Siemens SD motor type: 1CV3162A low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line Premium Efficiency IE3, 2-pole * size 160M, * 11 kW (50 Hz) 12.6 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color. Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B 3, without motor protection Terminal box at top
-
1LE1503-1DA33-4AA4 Siemens SD motor type: 1CV3163A low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line Premium Efficiency IE3, 2-pole * size 160M, * 15 kW (50 Hz) 17.3 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color. Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B 3, without motor protection Terminal box at top
-
1LE1503-1DA43-4AA4 Siemens SD motor type: 1CV3164A low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line Premium Efficiency IE3, 2-pole * size 160L, * 18.5 kW (50 Hz) 21.3 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color. Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B 3, without motor protection Terminal box at top
-
1LE1503-1DB23-4AA4 Siemens SD motor type: 1CV3162B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line Premium Efficiency IE3, 4-pole * size 160M, * 11 kW (50 Hz) 12.6 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color. Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B 3, without motor protection Terminal box at top
-
1LE1503-1DB23-4FB4 Siemens SD motor type: 1CV3162B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line Premium Efficiency IE3, 4-pole * size 160M, * 11 kW (50 Hz) 12.6 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color. The product will be delivered with either the Siemens or Innomotics product brand. 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B 5, flange: FF300 (A350) 3 PTC thermistors for disconnection (2 terminals) Terminal box at top
-
1LE1503-1DB23-4FB4-Z Siemens SD motor type: 1CV3162B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line Premium Efficiency IE3, 4-pole * size 160M, * 11 kW (50 Hz) 12.6 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color. Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions
-
1LE1503-1DB43-4AA4 Siemens SD motor type: 1CV3164B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line Premium Efficiency IE3, 4-pole * size 160L, * 15 kW (50 Hz) 17.3 kW (60 Hz) 60 Hz, P60: IE2 standard color RAL 7030 if no order code is specified for selecting another color. The product will be delivered with either the Siemens or Innomotics product brand. 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B 3, without motor protection Terminal box at top
-
1LE1503-1DB43-4AB4 Siemens SD motor type: 1CV3164B low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line Premium Efficiency IE3, 4-pole * size 160L, * 15 kW (50 Hz) 17.3 kW (60 Hz) 60 Hz, P60: IE2 standard color RAL 7030 if no order code is specified for selecting another color. Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B 3, 3 PTC thermistors for disconnection (2 terminals) Terminal box at top
-

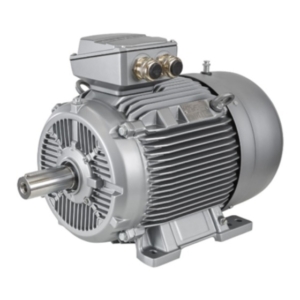

1LE1503-1DB43-4GB4-Z+H00 Siemens SIMOTICS SD MOTOR TYPE: 1CV3164B Low-voltage motor, IEC Squirrel-cage rotor, self-ventilated,,IP55 Temperature class 155(F) according to 130(B) cast iron frame, Basic line Premium Efficiency IE3, 4-pole, Size 160L, 15kW (50 Hz) 17.3kW (60 Hz)
-
1LE1503-1DB49-0AB4-Z B02+L23+L25+M2F+N06+S03 Siemens motor type SD: 1CV3164B low voltage motor, IEC cage rotor, naturally cooled, IP55 temperature class 155(F) according to 130(B) grey cast iron housing Basic line Premium Efficiency IE3, 4-pole * large. const. 160L, * 15kW (50Hz) 17.3kW (60Hz) 60Hz, P60: IE2 standard colour RAL 7030, if no other colour has been selected by means of a short abbreviation. For the marketing of this product, the Terms and Conditions of Innomotics apply exclusively, see https://www.innomotics.com/ terms-and-conditions 3 AC 60Hz 460VD * Power 50 Hz IM B 3, 3 PTC thermistors for shutdown (2 terminals) terminal block at the top B02=test certificate 3.1 according to EN 10204 L23=relubrication device L25=reinforced on both sides, Bearing for side DE (AS) and NDE (BS) Bearing size 63 N06=Temperature class 155 (F), Utilisation according to 130(B), Coolant temperature 50 °, Output reduction approx. 8 % S03=Special paint, resistant to sea air
-

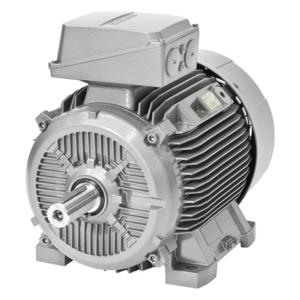

1LE1503-1EA23-4AA4 Siemens SIMOTICS SD motor type: 1CV3182A low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line Premium Efficiency IE3, 2-pole * size 180M, * 22 kW (50 Hz) 24.5 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color; this product will show either Siemens or Innomotics as manufacturer. 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B3 without motor protection terminal box at top
-
1LE1503-1EA23-4AB4 Siemens SD motor type: 1CV3182A low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line Premium Efficiency IE3, 2-pole * size 180M, * 22 kW (50 Hz) 24.5 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color. Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B3 3 PTC thermistors for disconnection (2 terminals) terminal box at top
